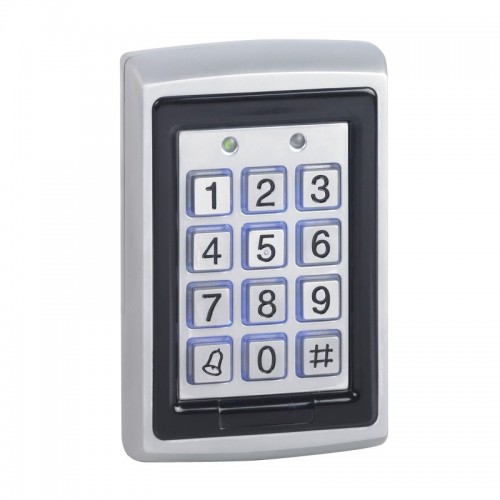

Digital keypad and proximity token reader

DG500 Digital keypad & proximity reader, back lit keys 500 user codes

Part Code: DG500

£59.76 ex 20% VAT (£71.71 inc. VAT)

13 in stock, immediate despatch

Same Day Despatch on working days.

Optional Extras:

	Easiprox Proximity Card - Pack of 10 + £15.00
	Easiprox Token - Pack of 10 + £15.00
	Keypad KP500 Waterproof External use shield + £10.00

Find a distributorSign up now and buy on-line site or from a range of Distributors. Book an installation Let us provide you with a reliable qualified trade installer.

Product Information
Specification & Downloads

Digital keypad and proximity reader with back lit keys 500 user codes

User Modes: PIN only, Token* only, Secure Token* & PIN

Works with JWS Easiprox Cards and Fobs

Details
Back lit keys
LED indication
Weatherproof but if mounting externally fit supplied Rain Cover
Surface mount
Built in prox reader
Uses JWS Easiprox Cards and Fobs
IP65
12vDC
Includes 5 cards
2 relays

TECHNICAL INFORMATION
Input voltage: 12Vdc
Current draw: 130mA @ 12V,
Relays: COM, NO, NC (2A max)
Dims: 120mm(H) x 76mm(W) x 27mm(D)
Proximity: EM format, 26 bit / 125kHz

For Help, Call 01761 414 700

Need advice on which product to purchase? No problem. Call our friendly sales and support team on 01761 414 700 or send us an email. We're more than happy to discuss your requirements.
