The JWS Toilet Touch Free TLS & WC locking kit is a simple and hygienic way of locking and indicating the Vacant/ Engaged or Locked status of a Toilet Door.
The Touch Free Sensor is sensitive up to 50mm and is MicroGuard TM antimicrobial coated - so in the event anyone does touch the switches, it will kill 99.9% of bacteria!
A Jack and Jill version is available upon request for 2 , 3 doors accessing one central facility.

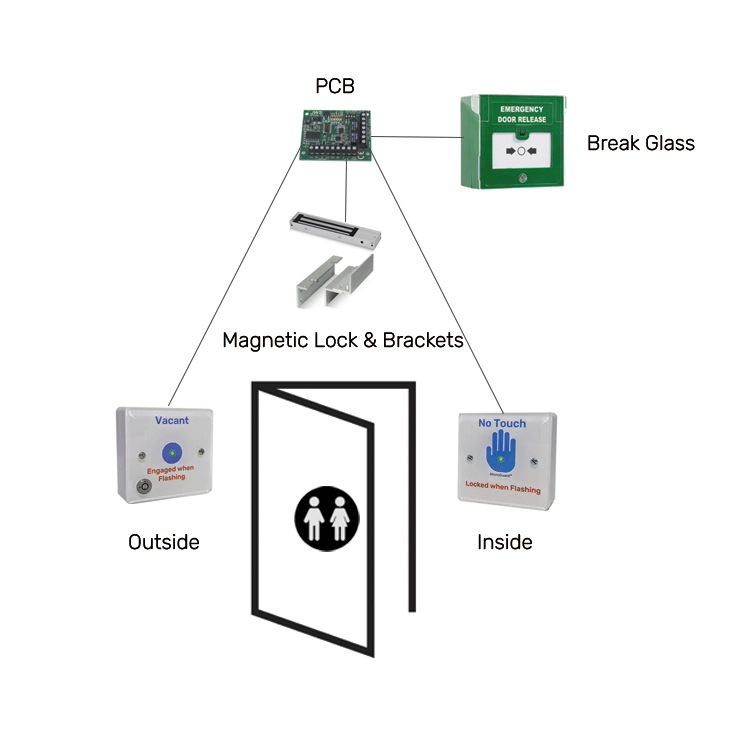

How it works:
Entry - Access can be gained into the toilet by initially opening the door manually. The door needs to be in a closed position before progressing to the next stage.
Locking - Use internal Touch Free Sensor which will activate the door lock(s). The internal Touch Free Sensors and external Indicator unit will flash, showing the user that the door is locked and to people outside, that the toilet is engaged.
Unlocking - Use the internal Touch Free Sensor again and the lock(s) is released, allowing the door to be opened manually.
options

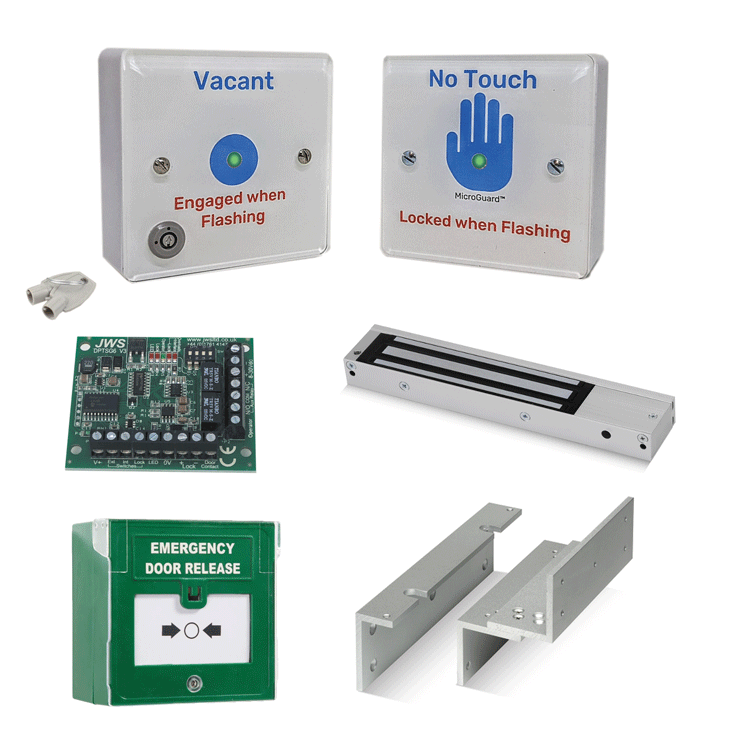

Whats in the kit?
TLS WC PCB
"Vacant / Engaged when Flashing "Indicator unit
Single Gang: 85 x 85 x 50 mm
(fitted with Keyswitch for emergency override)
Touch Free (up to 50mm) "No Touch / Locked When Flashing" No Touch Sensor
Single Gang: 85 x 85 x 30 mm
(Internal which locks and unlocks the door)
Resettable Breakglass with Cover & reset key
User labels
Slimline Maglock and Z and L Bracket Kit
Optional Extras ( choose from list above)
Range of 12v Boxed Power Supplies
Backup battery
NB. Please note in order to provide a higher quality keyswitch we have relocated it in the side of the surface mount back box and no longer in the sensor front plate.
WCLOCK-L-KIT
