Touch Free Toilet Door Kit - Round Housing

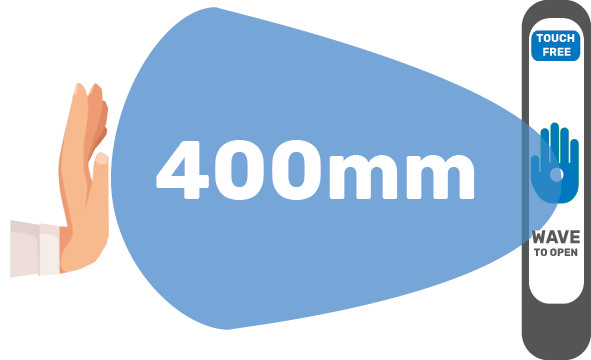

Touch Free (up to 400mm)  and MicroGuard™ Anti-Microbial Coated Toilet Locking System for Automatic Door Operators.

Designed for DDA compliance.

Easily integrated into a toilet with a new or existing Automatic Door Operator.

Operated by two JWS Touch Free Sensors  it controls Entry by Opening and Locking the door at the appropriate times interfacing with both the Automatic Door operator and a locking device (maglock).

How it works:
1 - Entry. Wave hand near the external sensor. The door opener will activate to provide access.

2 - Lock. Wave hand near the internal sensor to lock the door. To confirm the door is locked, the indicators on both Sensors will flash showing the toilet is engaged and inhibiting the entry sensor.

3 - Exit. Wave hand again near the internal sensor and the indicator stops flashing. The door will be unlocked and the door opener activated. The entry sensor stops flashing and becomes operable once again to provide access.

Whats in the kit?
Apart from the Automatic Door opener (and associated safety devices), we like to think that this kit comprises everything you need for your toilet door:

DPTS PCB (already fitted in power supply)
12v 1A PSU ( powers DPTS and lock)  Size: 200 x 225 x 75mm
Round Open (External) Touch Free Sensors with emergency override key switch (2 keys included) - IP65
Round Lock (Internal) Touch Free Sensor  - IP65
Housing Dimensions: (mm): 166 (dia) x 35 (d) Door Contact
Resettable Breakglass with cover and one reset key
User labels
Slimline Maglock
Z and L Bracket Kit

All work undertaken on Automatic Doors must comply with EN16005
JWS recommend using a suitably qualified company/contractor

Example Layout below
Please ensure your Risk Assessment complies with the end-users requirements and EN16005 guidelines
