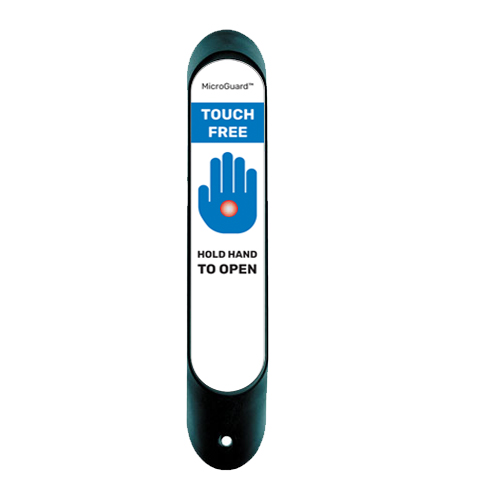

Touch Free Hand Sensor with MicroGuard™ Anti-Microbial Coating with IP65 rating, suitable for Internal or External installations.
Unlike push pads no touch is required making them ideal for users with physical disabilities or where infection / virus control is a concern.
Supplied in ARC / Slimline housing with up to 400mm range.
7-30v DC, Hardwired (4-wire).
Ideal for manually impulsing (triggering) door openers, activating access control, door entry and other switching applications.
LED & Signage aids users with visual impairments (superior LRV rating than a push pad)
Audible indication provided by on-board sounder
The on-board relay has Common, Normally Open and Closed connections available as well as the LED which can be wired to be either constantly ON, OFF when activated or ON when activated.
Signage: 'Hold Hand To Open'
Product is designed and manufactured in-house by JWS, full product customisation including your company name / logo / website etc. available at no extra cost and no minimum order required.
Architrave Touch Free Sensors
MicroGuard™ Data Sheet
Technical Specification
MicroGuard™ Anti Microbial Coating
Touch Free Range up to 400mm
IP Rating: IP65 (Internal & External use)
Operating Voltage: 7 to 30v DC (4-wire)
Current Consumption : 27mA (qui) 40mA (active)
Relay Connections*: NC,NO, C and LED + / -
Dimensions: (mm): 225 (h) x 40 (w) x 49 (d)
Activation warning: Red and Green 'ultrabrite' bi-colour LED and sounder
Housing Material: Nylon (glass filled)
Housing Backplate: 2mm steel (anodised)
Backplate Gasket: 2mm foam
Signage Plate: Touch acrylic
Signage Makeup: Back printed long life vinyl
Signage Inks: Long life Roland Eco-Sol UV resistant
*The on-board relay has Common, Normally Open and Closed connections available as well as the LED which can be wired to be either constantly ON, OFF when activated or ON when activated.

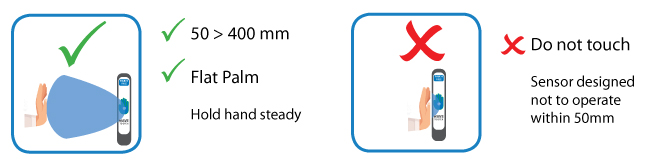

How to use

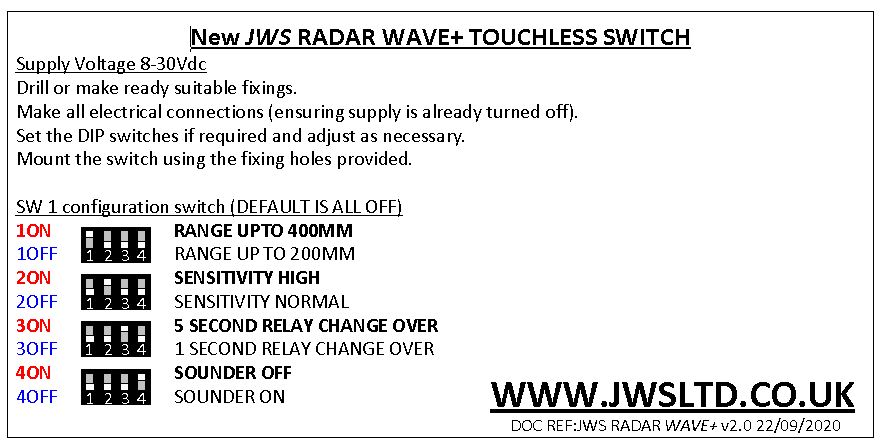

DIP Switches
In 99% of installations the DIP switches can be left at factory settings (all off)
Should you need to change them please see following image:
