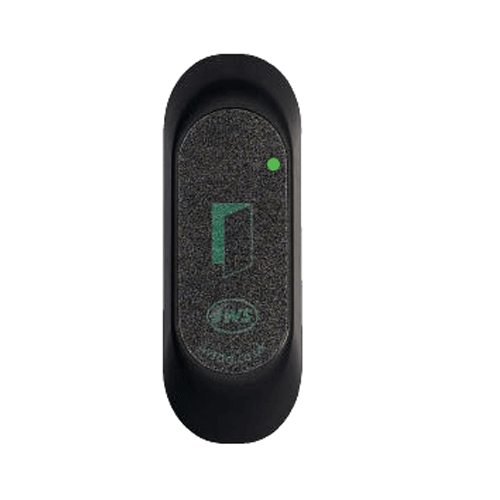

The JWSMINIPROX is a 125KHz clock & data format proximity reader. Its slim profile (39mm) makes it ideal for door jamb / architrave fitment and is suitable for internal & external applications being vandal resistant with hidden fixings.
For a reader of this size the read range is very impressive; up to 50mm with fobs and 80mm with cards.
*Please note that this is a 'reader only' and requires an Access Control unit like the S1 to control it*
Technical Specification
- Material: ABS Plastic
- IP Rating: IP67, anti-invasive
- Fully potted and hermetically sealed
- Current Consumption: 12mA (qui) 20mA (active)
- Connections: Mini terminal block (not flying lead)
- Dimensions (mm): 111 (h) x 39 (w) x 14 (d)
- Indicators: Green LED (valid) | Red LED (void)
- Audible: On-board sounder
Notes on JWS Proximity Cards & Tokens
JWS proximity cards and tokens are passive transponders and do not require a battery. There is no 'card-learning' as JWS cards & tokens are site-coded with sequential numbers, allowing fast & efficient programming. Cards & tokens can be added or removed in blocks if desired. A competitive in-house ID card printing service is available for both magnetic stripe, proximity and Mifare cards.
