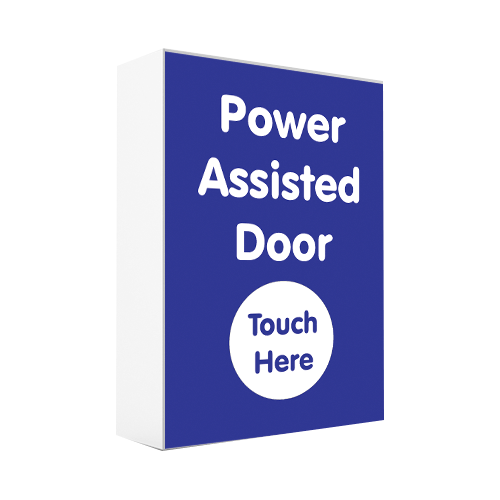

JWS Wireless 868MHz 'Through Glass' Touch Sensor. Ideal for manually impulsing (triggering) door openers, activating access control, door entry and other switching applications. Signage: 'Power Assisted Door' (Boots).
Unlike push pads no physical pressure is required to operate making them ideal for users with physical disabilities. Its signage aids users with visual impairments giving it a higher LRV value than its counterparts (e.g. a push pad).
Its good for over 120,000 operations on one set of batteries and being wireless it can be installed and working in minutes. Simply learn the unique signal from the wireless Touch Sensor on the Receiver (sold separately) & you're ready to go!
A note on double glazing...
Sealed double glazed units are manufactured to many different specifications and requirements and it is not feasible to state categorically that these units operate through every variant available. The frame of the double glazed unit must be earthed and it is advisable to avoid wooden framework and doors. Although the wireless units work through some earthed double glazed sealed units - they will not work through all. If in doubt check with us first.
Through Glass Touch Sensors
Through Glass Data Sheet
Technical SpecificationUp to seven wireless Touch Sensors can be used per receiver
Operating Voltage: 3v DC (2 x Powerone AA batteries included)
(Specified batteries must be used to achieve quoted life expectancy)
Battery Life Expectancy: Up to 120,000 operations (has no LED)
Operating Frequency: 868MHz (Secure Encrypted Wireless)
Dimensions: (mm): 124(w) x 38mm(d) x 175(h)
Housing Material: ABS
Signage Makeup: Back printed long life vinyl
Signage Inks: Long life Roland Eco-Sol UV resistant
