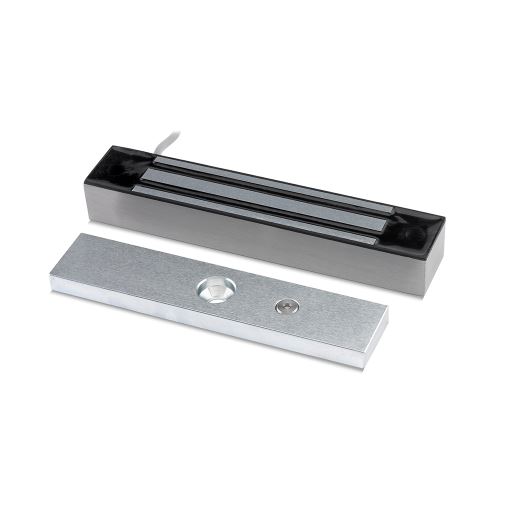

Micro Magnetic Lock Monitored

IP65 Rated Micro Magnetic Lock - Face and Standard Fix

Part Code: U10003FS

£59.80 ex 20% VAT (£71.76 inc. VAT)

56 in stock, immediate despatch

Same Day Despatch on working days.

Optional Extras:

Micro Magnetic Lock Z & L Bracket Kit

+ £30.50

Find a distributorSign up now and buy on-line site or from a range of Distributors. Book an installation Let us provide you with a reliable qualified trade installer.

Product Information
Specification & Downloads

Micro Magnetic Lock suitable for Internal & External use!

U10003F/S is Face and Standard Fix (replaces U10003S and U10003F )

Operating voltage 12Vdc
Stainless Steel
Fail-Safe (Power-to-Lock)
Weather resistant: IP65
Vandal resistant
Holding force up to 300lbs (136Kg)

Voltage tolerance: ±15%.
Current draw: 300mA at 12Vdc (at temperature 20°C).
Operating temperature: -10~55°C (14 to 131°F).
Lock’s surface temperature: Current temperature ±20% (when power is on).
Humidity: 0~95% non-condensing.
Special Zinc finishes for magnet and armature plate.
Weight: 1.5kg (approx).
