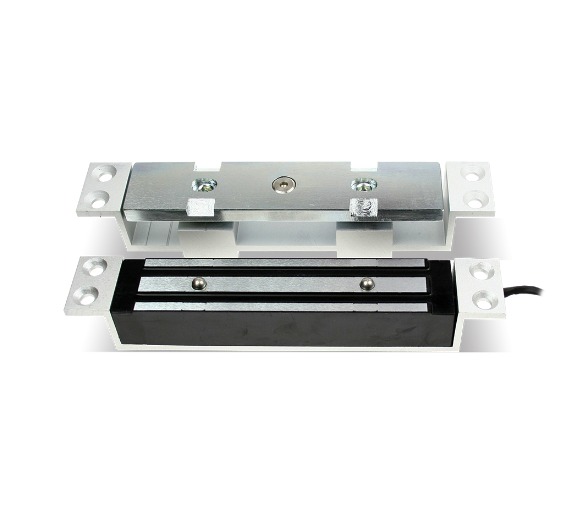

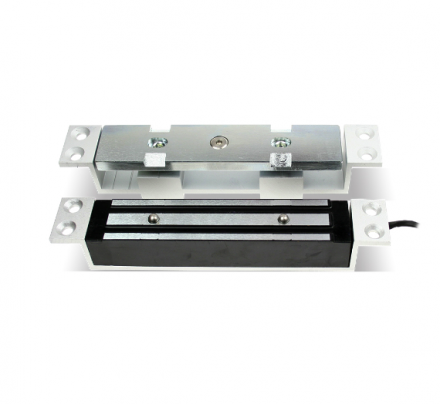

Unmonitored & Monitored Shear Magnets

12 - 24v DC Unmonitored and Monitored Shearlock with 680kg Holding Force

Voltage tolerance: ±10%.

Current draw: 500mA at 12Vdc, 250mA at 24Vdc (at temperature 20°C).

Operating temperature: -30~55°C (-22 to 131°F).

Lock’s surface temperature: Current temperature ±20% (when power is on).

Humidity: 0~95% non-condensing.

Special Zinc finishes for magnet and armature plate.

Weight: 2.0kg (approx).
