Wireless Automatic Assisted Door Touch Sensor JWS

Perfect substitute for a push pad, with more features in comparison.

Part Code: TXRVRASS

£72.00 ex 20% VAT (£86.40 inc. VAT)

61 in stock, immediate despatch

Same Day Despatch on working days.

Optional Extras:

Automatic Door Wireless Touch Sensor Receiver

+ £39.00

Find a distributorSign up now and buy on-line site or from a range of Distributors. Book an installation Let us provide you with a reliable qualified trade installer.

Product Information
Specification & Downloads

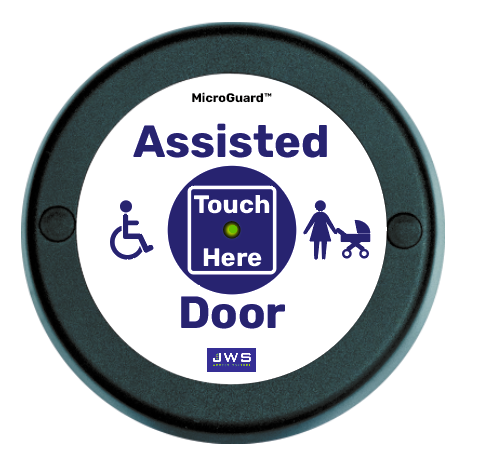

Wireless Automatic Assisted Door Touch Sensor in RVR / round housing. Ideal for manually impulsing (triggering) door openers, activating access control, door entry and other switching applications. Signage: 'Assisted Door' with wheelchair & pram logos.

New Model Touch Sensor Transmitter now shipping. Sounder and LED for Audible & Visual Indication / feedback for the user, Upgraded wireless range: 10 times greater distance - in excess on 200m.

Suitable for internal and external installation (gasket & metal backplate included) and those subject to abuse. Its large round design makes it a perfect substitute for the push pad with more features and aesthetically superior in comparison.

Unlike push pads no physical pressure is required to operate making them ideal for users with physical disabilities. Its signage aids users with visual impairments giving it a higher LRV value than its counterparts (e.g. a push pad).

Its good for over 120,000 operations on one set of batteries and being wireless it can be installed and working in minutes. Simply learn the unique signal from the wireless Touch Sensor on the Receiver (sold separately) & you're ready to go!

Round Touch Sensors

Round Data Sheet (PDF)

Technical Specification
Up to seven wireless Touch Sensors can be used per receiver
Operating Voltage: 3v DC (2 x Powerone AA batteries included)
(Specified batteries must be used to achieve quoted life expectancy)
Battery Life Expectancy: Up to 120,000 operations (has no LED)
Operating Frequency: 868MHz (Secure Encrypted Wireless)
Dimensions: (mm): 166 (dia) x 35 (depth)
Housing Material: Nylon (glass filled)
Housing Backplate: 2mm steel (anodised)
Signage Plate: Touch acrylic
Signage Makeup: Back printed long life vinyl
Signage Inks: Long life Roland Eco-Sol UV resistant
IP Rating: IP54
